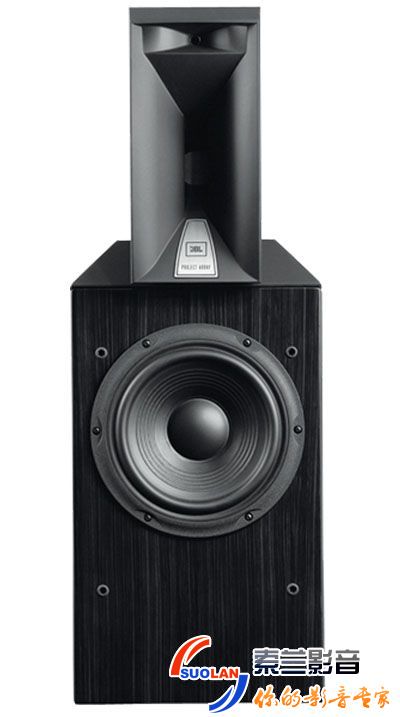

JBL 800 ARRAY 书架音箱
http://www.hifi.com.cn/ 来源:索兰影音 关键词:JBL 音箱 800 家庭影院
为了在一流的家庭影院和音乐系统中呈递非凡的音效,JBL 的 Project Array™ 款型采用了直接源自公司的旗舰 K2® Series 扬声器和专业录音棚监听器的技术。 中心声道扬声器配置双 200mm (8") Aquaplas 处理纸浆锥盆低音扬声器;435AL-1 75mm (3") Aquaplas 处理铝圆顶压缩式驱动单元,安装在垂直号角中;045Ti 25mm (1") 纯钛压缩式驱动单元,安装在 SonoGlass® 恒向性号角中。 双低音驱动单元安装在独立梯形外壳中的角型挡板上
800 array装载有全新改良设计的大型号角中/高音,扬声器外型非常华丽,造工精致,号称达到了jbl数十年前雄霸专业音响级时的最高水平,箱体的造工非常出色。
Description | 3-Way, 200mm (8") Bookshelf Speaker |
Series | Project Array |
Finish | Black Gloss |
Speaker Configuration | Array 8: 200mm (8") polymer-treated pulp-cone driver with 38mm (1-1/2") copper edge-wound voice coil on aluminum former. 045Ti: 25mm (1") puretitanium compression driver. 175Nd-3: 44mm (1-3/4") Aquaplas-treated aluminumdome compression driver. |
Frequency Response | 55Hz – 40kHz |
Power Handling | 200 Watts |
Max. Recommended Amplifier Power | 200 Watts |
Low-Frequency Transducer | Array 8 8" polymer-treated pulp-cone driver with rubber surround, 1-1/2" copper edge-wound voice coil and ferrite motor assembly, mounted in a trapezoidal enclosure |
High-Frequency Transducer | 175Nd-3 1-3/4" Aquaplas-treated aluminum-dome compression driver with aluminum edge-wound voice coil and neodymium motor assembly, mounted in a vertical SonoGlass™ constant-directivity horn |
Ultrahigh-Frequency Transducer | 045Ti 1" Pure-titanium compression driver with aluminum edge-wound voice coil and 2" neodymium motor assembly, mounted ina SonoGlass™ constant-directivity horn |
Sensitivity (2.83V/1m) | 88dB |
Nominal Impedance | 8 Ohms |
Dimensions (H x W x D) | 743mm x 273mm x 356mm / 29-1/4" x 10-3/4" x 14" |
Weight | 18kg / 40 lb |
