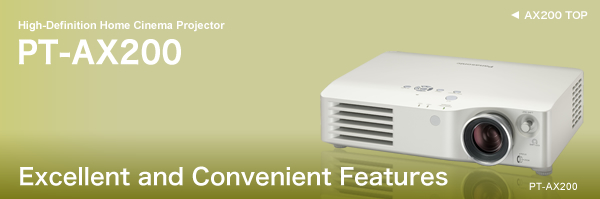

  • 松下 PT-AX200 投影机 (停产)

    http://www.hifi.com.cn/ 来源:索兰影音 2012-03-23 18:25:26 关键词:松下 PT-AX200 投影机





    松下公司最新发售家用影音设备的720p液晶投影仪“休闲剧场 PT-AX200”。

        采用0.7寸/ 1,280×720象素的3LCD液晶面板投影仪。投影光源为220W UHM灯泡,亮度可以达到2000流明,对比度为6000:1,在当前的主流机内性能应该来说是比较强劲的了。 AX200使用的是2倍电动镜头,100寸画面只需3-6m投影距离,短焦性能非常优秀,并对应上下78cm、左右55cm移动的“Lens Shif”机能。
      AX200也配备了最新的1.3规格HDMI接口2路,且同时支持HDMI/分量的1080/24p信号输入,连接PC用的模拟RGB接口也可以在背面找到,基本可以满足各类影音欣赏需要。
      视频信号处理从输入到输出用最大14bit的数字处理,比AX100(最大10bit)微妙的作为亮度和颜色的差别也能浓厚地再现。同时,实现根据独自开发的“定标LSI”,有压倒了噪音的鲜锐感觉的映像。
      为了实现与纯度高(贵)的3原色面板,采用有以前模型和同样油灯光最佳化了的光谱特性的光学过滤器“电影过滤器”。据说根据该公司的**真空蒸发技术实现着,“沉了的黑”和使清洁的比色图表现实成为可能。
      映像方式与生活间(明亮的房间)用准备剧场房间(暗的房间)用。从计7方式能选择。同时,做了画质量的数据到8图形保存可能,重新给保存数据加上名字的事可能了。
    透镜以光学2倍zoom(F1.9~3.1),40~200形式的投射对应。100形式的投射距离是约3~6m。透镜移动也能进行,上和下约78cm,以左右约55cm调整可能摔倒写位置。
      输入终端是HDMI2系统,组件和S视频,合成的模拟RGB(D-Sub 15大头针),RS-232C各1系统。HDMI支持1080p(60/24p)信号的输入。
    背照光附着的simplicity遥控。能重新分配为经常使用的功能键。噪音为25dB(工作的时候)。



      PT-AX200
    Power supply 100–240 V AC, 50/60 Hz
    Power consumption 290 W (0.08 W in standby mode with fan stopped)
    Amps 3.5 A - 1.5 A
    LCD *1
    panel
    Panel size 0.7 (17.78 mm) diagonal
    Aspect ratio 16:9 aspect ratio
    Display method Transparent LCD panels (x3 R/G/B)
    Drive method Active matrix
    Pixels 921,600 (1,280 x 720) x 3, total of 2,764,800 pixels
    Lens Manual zoom (2x) / Manual Focus, F 1.9-3.1, f 21.7-43.1 mm
    Lamp *2 220 W UHM™ lamp
    Brightness *3 2,000 lumens *4
    Contrast *3 6,000:1 *4 (full on/full off)
    Centre-to-corner uniformity ratio 85 %
    Projection size 1,016 - 5,080 mm (40–200 inches) diagonally, 16:9 aspect ratio
    Throw distance 1.2–12.4 m (3'11" - 40'8") (16:9 aspect ratio)
    Resolution 1,280 x 720 pixels (1,920 x 1,080 pixels with compression)
    Colors Full color (1,073,741,824 colors)
    Scanning frequency RGB fH 30–70 kHz, fV 50– 87 Hz
    Dot clock: Less than 150 MHz
    YPBPR signal compatibility 480i (525i), 480p (525p), 576i (625i), 576p (625p),
    720(750)/50p, 720(750)/60p,
    1080(1125)/24p, 1080(1125)/50i, 1080(1125)/50p,
    1080(1125)/60i, 1080(1125)/60p
    S-Video/Video fH 15.75 kHz, fV 60 Hz (NTSC, NTSC4.43, PAL-M, PAL60)
    fH 15.63 kHz, fV 50 Hz (PAL, PAL-N, SECAM)
    Color system NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
    Optical axis shift *5 Horizontal: ±25%, vertical: ±63%
    Installation Ceiling/floor, front/rear
    OSD languages English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai
    Keystone correction range Vertical: approx. ±30°
    Terminals HDMI IN Dual - line, 19-pin HDMI connector
    PC(RGB) IN Single - line, D-sub HD 15-pin (female)
    R.G.B.: 0.7V [p-p], 75 Ω
    G.SYNC: 1.0V [p-p], 75 Ω
    HD/SYNC: TTL high impedance, automatic positive/negative
                        polanity compatible
    VD: TTL high impedance, automatic positive/negative polanity
            compatible
    COMPONENT IN Y, PB/CB, PR/CR: Single - line, RCA pin jack x 3
    Y: 1.0V [p-p] (including sync), 75 Ω
    PB/CB, PR/CR: 0.7V [p-p], 75 Ω
    S-VIDEO IN Single - line, Mini DIN 4-pin Y: 1.0V [p-p], C: 0.286 V [p-p], 75 Ω
    VIDEO IN Single - line, RCA pin jack 1.0V [p-p], 75 Ω
    SERIAL IN DIN 8-pin RS-232C compatible
    Power cord length 3 m (9´10˝)
    Cabinet material PC + ABS
    Dimensions *6 (W x H x D) 395 x 112 x 300 mm (15-17/32" x 4-13/32" x 11-25/32") *6
    Weight 4.9 kg (10.8 lbs)
    Operating environment temperature: 0°-40°C (32°-104°F)
    humidity: 20%–80% (no condensation)
    Remote Control Power supply 3 V DC (AA type battery x 2)
    Operation range Approx. 7 m (23´) (when operated directly in front of signal
    receptor)
    Dimensions
    (W x H x D)
    48 x 138 x 28 mm (1-7/8˝ x 7-27/32˝ x 1-3/32˝)
    Weight 125 g (4.4 oz.)
    Supplied accessories Power cord, Wireless remote control unit, Batteries for remote control (AA type x 2)
    Optional Accessories Replacement lamp: ET-LAX100
    Ceiling mount bracket: ET-PKX200
    Serial adapter: ET-ADSER (DIN 8-pin/D-sub 9-pin)

    Weights and dimensions shown are approximate.
    Specifications subject to change without notice.
