美国Velodyne威力登低音炮全系列产品Velodyne威力登低音炮
世界顶级低音炮Velodyne威力登登陆北京索兰影音倾力推介
北京索兰影音工作室本着:“致力于让世界著名的家庭影音系统进入中国家庭”的宗旨,着力引进世界知名的影音设备,我们将世界顶级的低音炮--Velodyne威力登全系列产品带入北京,希望这门威力十足的“大炮”能够帮助您的家庭影院更添光彩。我们将陆续在论坛里介绍Velodyne威力登的各款产品,敬请关注!
Velodyne威力登公司介绍:威力登声学公司成立于1983年,推出的产品以创新的设计、精细的作工、独到的声音表现,受到声学专家、发烧听友、及剧院系统的爱好者许多赞赏。
公司创始人David Hall的产品设计目标在于:降低及限制扬声器输出所产生的失真。而这一部份也正是他的专长,研发出的高增益伺服控制系统于1983年,第一次应用于测量及控制大型低音单体的动作上,由此而推出的ULD系列伺服控制超低音喇叭,其重要性被拿来与杜比实验室的噪声消除技术相提并论。此专利技术将扬声器的失真由15-30% 降至1%以下,威立登自此成为沉稳、精准、富动态超低音扬声器的代名词。
威力登的领导团队

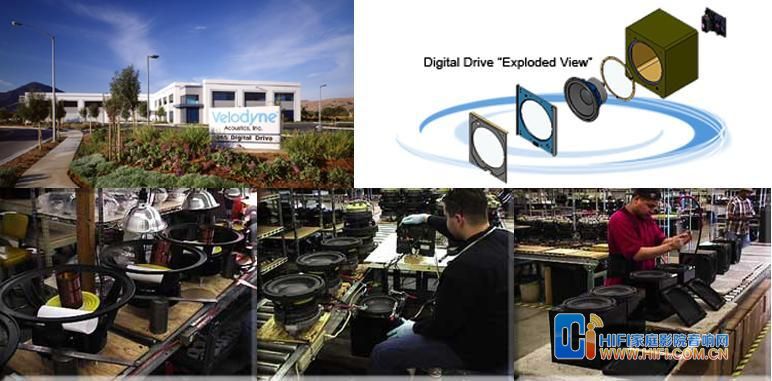

威力登公司
威力登CHTQ系列技术参数
替代CHT-R 系列的CHT-Q系列抵达索兰影音工作室。

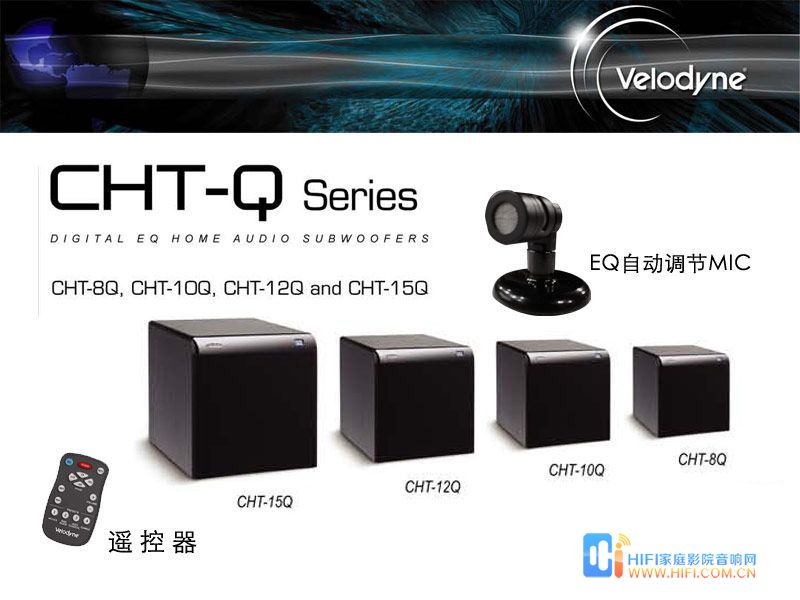

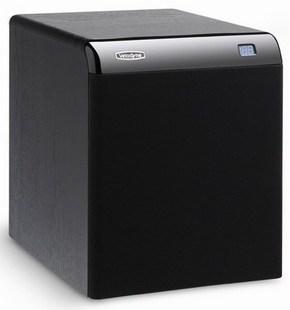

CHT-Q Series (CHT-8Q, CHT-10Q, CHT-12Q, CHT-15Q)
The CHT-Q Series subwoofers are the ideal combination of technology and an intuitive user interface, and they offer incredible value. Quickly and easily add a powerful, feature-rich subwoofer to your entertainment system. Use the included remote control to maximize the bass in your room from any source, while a clearly visible front LED display instantly confirms your choice. The CHT-Q subwoofers deliver great bass...made easy.
Features
- Automated, one-button, 5-band EQ room correction system
- Remote control with front-panel feedback
- Four one-touch listening presets
- Superior DSP digital performance
- Efficient "green" digital amplifiers
CHT-Q Series | ||||
Specifications | CHT-8Q | CHT-10Q | CHT-12Q | CHT-15Q |
Amplifier: | 360 watts Dynamic | 390 watts Dynamic | 450 watts Dynamic | 1500 watts Dynamic |
(Class D) | 180 watts RMS Power | 195 watts RMS Power | 225 watts RMS Power | 750 watts RMS Power |
Woofer: | 8” (20.3 cm) forward firing | 10” (24.5 cm) forward firing | 12” (30.5 cm) forward firing | 15” (38 cm) forward firing |
(6.3” piston diameter) | (8.2” piston diameter) | (9.7” piston diameter) | (12.7”piston diameter) | |
Magnet Structure: | 2.5 lbs | 2.5 lbs | 3.5 lbs | 4.4 lbs |
Frequency Response: | ||||
Overall | ||||
+/- 3 dB | ||||
17 – 240 Hz | 16 – 240 Hz | 14.6 – 240 Hz | 14 – 240 Hz | |
32 – 120 Hz | 28 – 120 Hz | 25 – 120 Hz | 23 – 120 Hz | |
Voice Coil: | 2-Layer copper | 2-Layer copper | 2-Layer copper | 2.5” 4-Layer copper |
Cone: | Reinforced fiber | Reinforced fiber | Reinforced fiber | Reinforced fiber |
Speaker-Level Pass-Through: | Fixed at 120 Hz high-pass | Fixed at 120 Hz high-pass | Fixed at 120 Hz high-pass | Fixed at 120 Hz high-pass |
Low Pass Crossover: | 40 Hz – 120 Hz adjustable | 40 Hz – 120 Hz adjustable | 40 Hz – 120 Hz adjustable | 40 Hz – 120 Hz adjustable |
(12 dB octave, | (12 dB octave, | (12 dB octave, | (12 dB octave, | |
24 dB ultimate) | 24 dB ultimate) | 24 dB ultimate) | 24 dB ultimate) | |
Outputs: | Line-Level | Line-Level | Line-Level | Line-Level |
Inputs: | Gold plated line-level | Gold plated line-level | Gold plated line-level | Gold plated line-level |
Digital Phase: | 0º, 90º, 180º, 270º | 0º, 90º, 180º, 270º | 0º, 90º, 180º, 270º | 0º, 90º, 180º, 270º |
Cabinet Design: | Extended Excursion Slot-loaded Bass-Reflex | Extended Excursion Slot-loaded Bass-Reflex | Extended Excursion Slot-loaded Bass-Reflex | Extended Excursion Slot-loaded Bass-Reflex |
Auto On/Off | Yes | Yes | Yes | Yes |
Removable Grille | Yes | Yes | Yes | Yes |
Video Shielding | No | No | No | No |
LED Display | Yes | Yes | Yes | Yes |
Accessories: | Mic, mic stand and remote control | Mic, mic stand and remote control | Mic, mic stand and remote control | Mic, mic stand and remote control |
Dimensions (H/W/D): | 15.25” x 12” x 16.375” | 16” x 15” x 18.25” | 18” x 15” x 19.5” | 21 x 18.375” x 20.75” |
(cm) with grille | 38.7 x 30.5 x 41.6 | 40.6 x 38.1 x 46.4 | 45.7 x 38.1 x 49.5 | 53.3 x 46.7 x 52.7 |
Shipping Weight: | 44 lbs. (2- kg) | 55 lbs. (25 kg) | 61 lbs. (28 kg) | 75 lbs. (34 kg) |
(approx) | ||||
Specifications are subject to change without notice. |

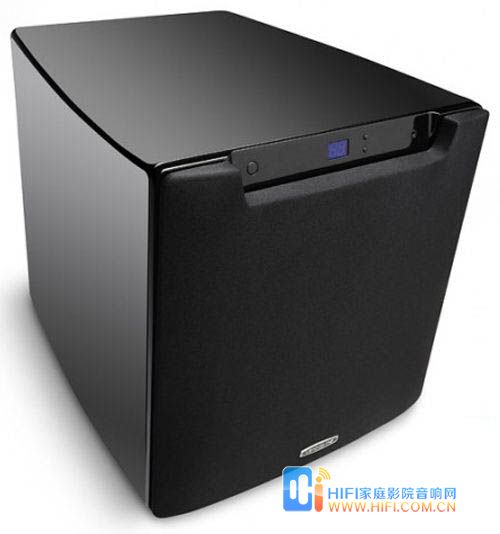

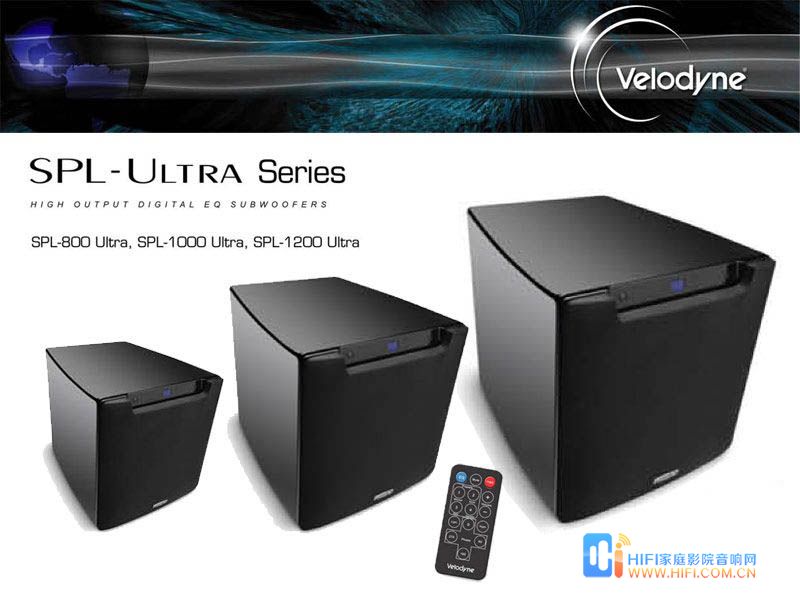

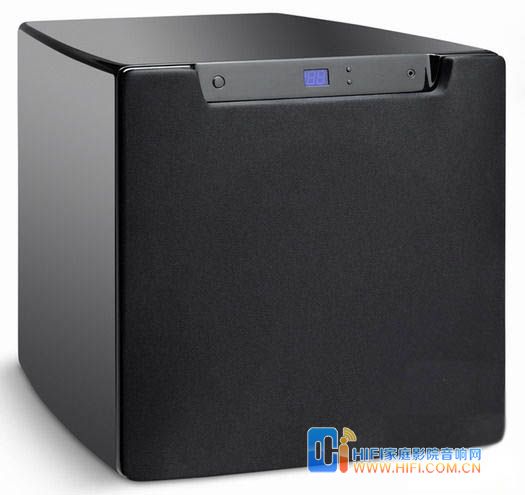

SPL-Ultra Series | |||
Specifications | SPL-800 Ultra | SPL-1000 Ultra | SPL-1200 Ultra |
Amplifier: | 2400 watts Dynamic | 2400 watts Dynamic | 2400 watts Dynamic |
(Class D) | 1200 watts RMS Power | 1200 watts RMS Power | 1200 watts RMS Power |
Woofer: | 8” forward firing | 10” forward firing | 12” forward firing |
(6.5” piston diameter) | (8” piston diameter) | (9.7”piston diameter) | |
Magnet Structure: | 204 oz. (12.7 lbs) | 346 oz. (21.6 lbs) | 346 oz. (21.6 lbs) |
Frequency Response: | |||
Overall | 16 – 240 Hz | 13 – 240 Hz | 13 – 240 Hz |
+/- 3 dB | 26 – 120 Hz | 23 – 120 Hz | 21 – 120 Hz |
Voice Coil: | 2.5” Dual Layer | 3” Dual Layer | 3” Dual Layer |
Inside/outside wound | Inside/outside wound | Inside/outside wound | |
Harmonic Distortion: | <5% (typical) | <5% (typical) | <5% (typical) |
High Pass Crossover: | 80 Hz (6 dB/octave) | 80 Hz (6 dB/octave) | 80 Hz (6 dB/octave) |
Low Pass Crossover: | 40 Hz – 120 Hz | 40 Hz – 120 Hz | 40 Hz – 120 Hz |
(adjustable) | (12 dB octave initial, | (12 dB octave initial, | (12 dB octave initial, |
24 dB octave ultimate) | 24 dB octave ultimate) | 24 dB octave ultimate) | |
Outputs: | Line-Level, 80 Hz up | Line-Level, 80 Hz up | Line-Level, 80 Hz up |
Inputs: | Line and Speaker Level | Line and Speaker Level | Line and Speaker Level |
Phase: | 0º, 90º, 180º, 270º | 0º, 90º, 180º, 270º | 0º, 90º, 180º, 270º |
Cabinet: | Sealed enclosure | Sealed enclosure | Sealed enclosure |
Finish: | Hand-rubbed black gloss lacquer or cherry veneer | Hand-rubbed black gloss lacquer or cherry veneer | Hand-rubbed black gloss lacquer or cherry veneer |
Video Shielded: | No | Yes | Yes |
Accessories: | Mic, mic stand and remote control | Mic, mic stand and remote control | Mic, mic stand and remote control |
Dimensions (H/W/D): | 11” x 10.5” x 14” | 13.5” x 13” x 16” | 15.25” x 14.88” x 18.5” |
(inc. feet, grille and knobs) | 28 cm x 26.7 cm x 35.6 cm | 34.3 cm x 33 cm x 40.6 cm | 38.7 cm x 37.8 cm x 47 cm |
Shipping Weight: | 33 lbs. (15 kg) | 43 lbs. (20 kg) | 49 lbs. (22 kg) |
(approx) | |||
Specifications are subject to change without notice. |
Velodyne威力登DD全系列产品

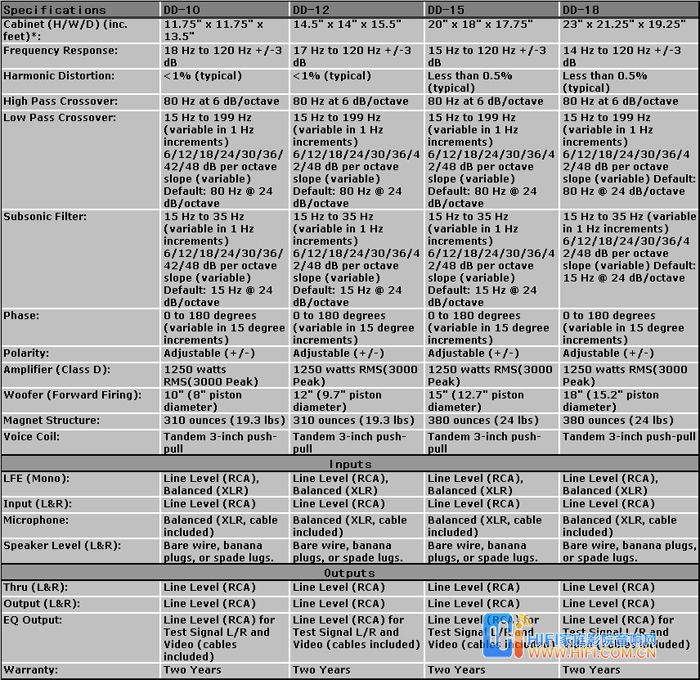

Velodyne威力登DD低音炮技术参数
1983年威力登推出了全球第一只搭载高增益伺服控制系统的超低音喇叭,20年后的今天,再次推出革命性的全新设计:使用微处理器控制的全数字化超低音!在物理特性的限制上,求箱体体积的最小化,却能再生出精准深沉的低频。DD系列的问世,再次将低音喇叭的声音表现推向更高的水准!
设计的理念与目标:要求得精准低频的再生,第一个挑战就是喇叭单体在大动态时所产生的失真。拜威力登专利的伺服控制技术,已能够在任何频率及音量水准之下,都能维持单体失真在1%以下。因此威立登低音的表现,已成为过去20年来其它低音喇叭制造厂衡量自身产品的标准。
选购颜色

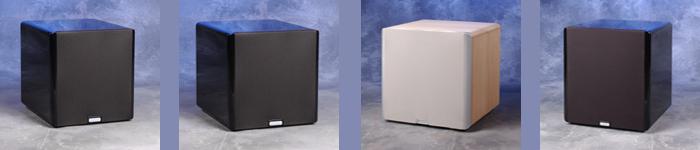

Digital Drive Series (DD-10, DD-12, DD-15THX™ , DD-18THX™ )
The industry's first microprocessor-controlled, all-digital, High Gain Servo-controlled subwoofers with patent pending room equalization system.
Velodyne has achieved digital perfection with the Digital Drive Series subwoofers. The series consists of 4 digital subwoofers the DD-10 (10 driver, 8 piston diameter), the DD-12 (12 driver, 9.7 piston diameter), the DD-15 (15 driver, 12.7 piston diameter), and the DD-18 (massive 18 driver, 15.2 piston diameter). The Digital Drive Series features Velodynes revolutionary Digital Drive room management technology that takes subwoofer room equalization to a new level. This latest Velodyne innovation allows the subwoofers frequency response in any room to be measured and digitally corrected in real-time using a supplied microphone, and stored in the units memory to assure ideal performance in the consumers listening area.

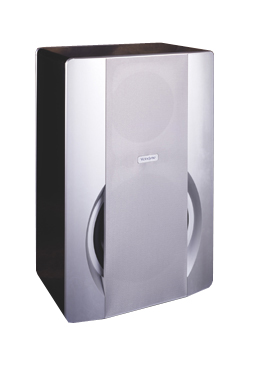

Velodyne威力登DD旗舰产品--超低音之王-DD1812
THX™ Certified Ultra2
The ultimate technology standard for movies and music.
The Velodyne subwoofers that are THX Ultra2 Certified include models from our Digital Drive Series and HGS Series:
Model | Status | Category | Region |
DD-15 | Certified | Ultra 2 | Worldwide |
DD-18 | Certified | Ultra 2 | Worldwide |
HGS-15 | Certified | Ultra 2 | Worldwide |
HGS-18 | Certified | Ultra 2 | Worldwide |
THX certification standards are designed with a simple purpose: to maintain all the nuance and dynamics of an original movie soundtrack when reproduced in your home. Before any home theatre component can be THX Ultra2 certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra2 logo, which is your guarantee that the Home Theatre products you purchase will give you superb performance for many years to come. THX Ultra2 requirements cover every aspect of the performance of the product including power output, frequency response, distortion, etc.
To find out more about THX, click here.
