Full HD 3D家庭影院投影仪PT-AE7000EH正式面市。PT-AE7000EH具有1080p (1,920 x 1,080 pixel)分辨率，也是全世界第一台使用480Hz驱动透明LCD面板的3D投影仪产品，并且支持3D显示功能，同时还采用了自有Overdrive Technology技术，可以有效降低串扰，提高投影质量。
PT-AE7000EH的关键3D投影技术是由松下好莱坞实验室（Panasonic Hollywood Laboratory）的工程师们协作开发的，这些工程师们也大量创作3D蓝光光盘，并开发投影仪的智能镜头存储（Intelligent Lens Memory）功能，拥有该项技术用户可以轻松编程调试并获得六个不同的变焦和对焦位置。
PT-AE7000EH高清3D家庭影院投影仪还支持300000:1(三十万比一)对比度，同时它的亮度也达到了2000流明，另外它的3D功能还是比较强悍的，可以支持用户将2D转换为3D模式，即2-3D转换功能，当然正如我们所知道的那样转的3D不如原生的3D好。
[page]

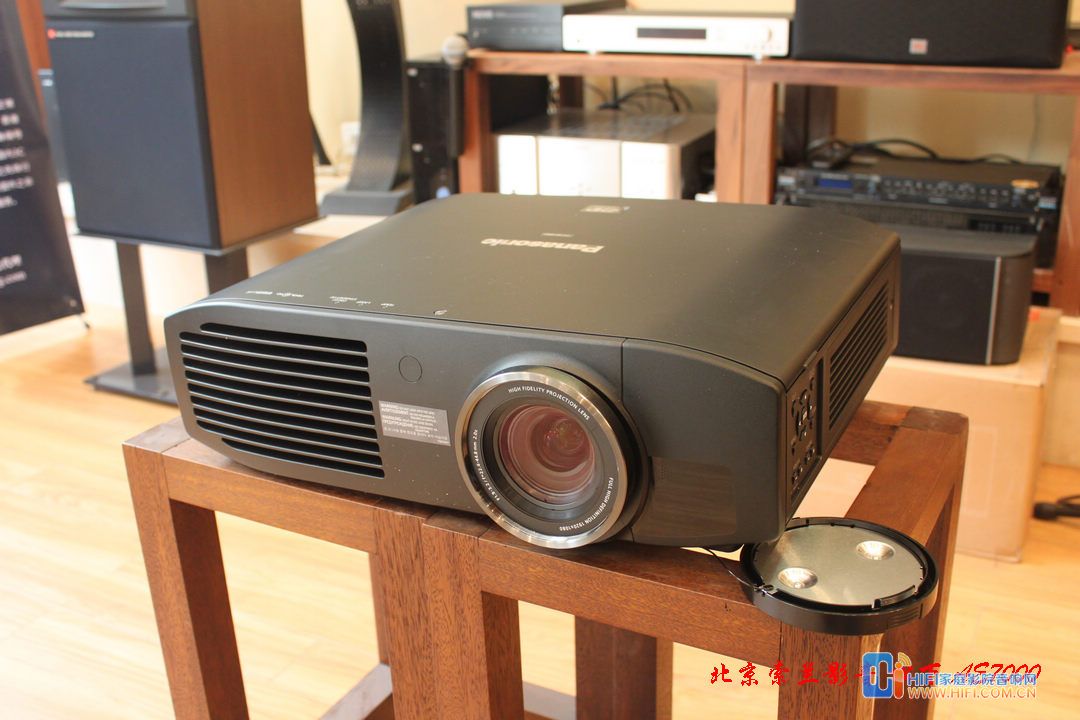

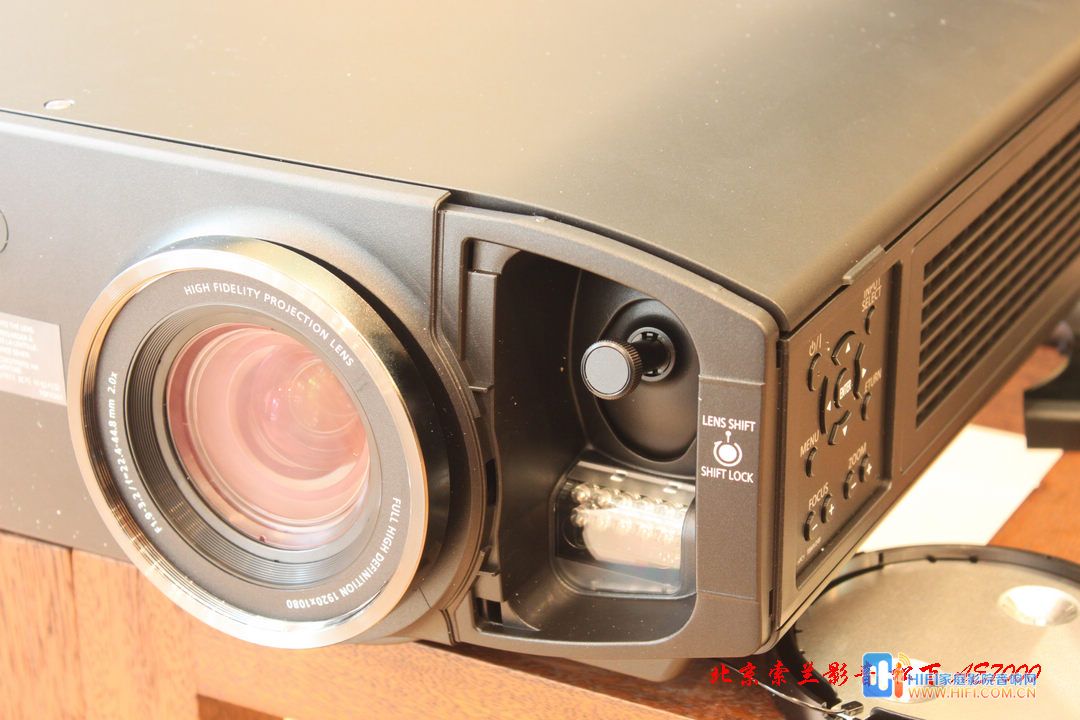

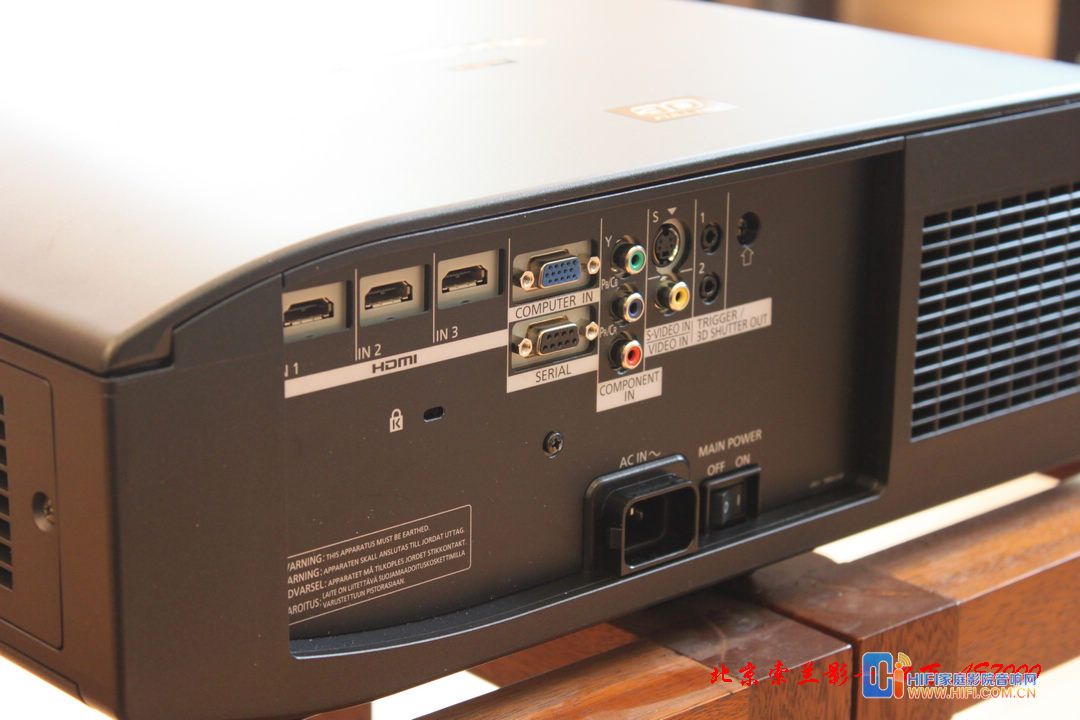

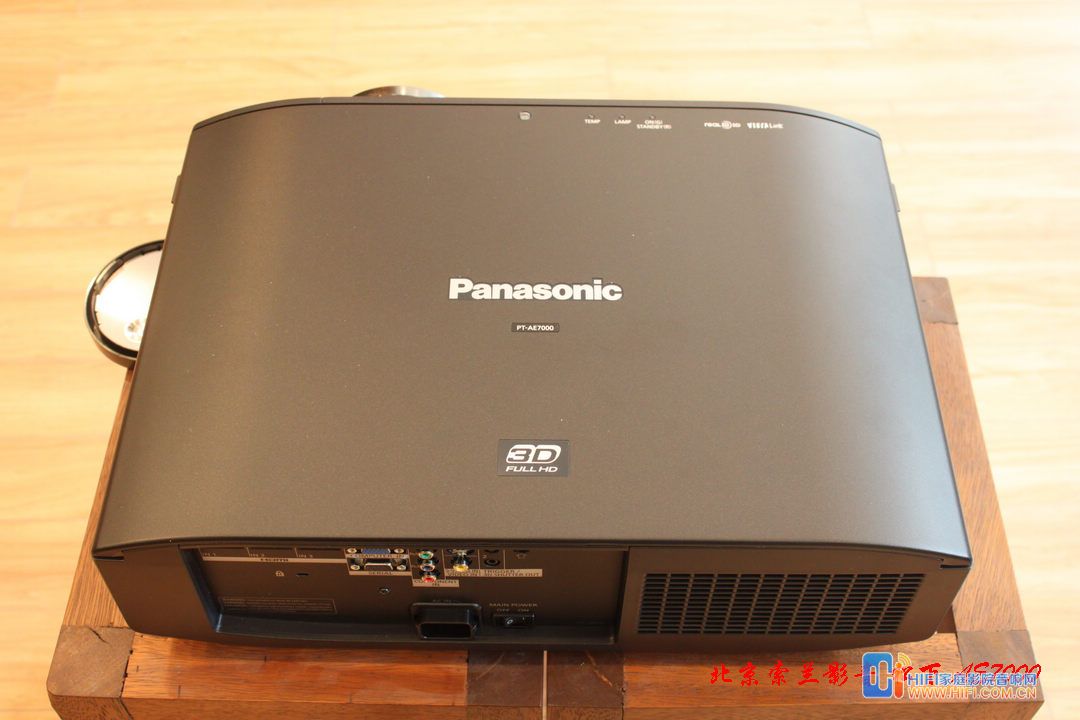

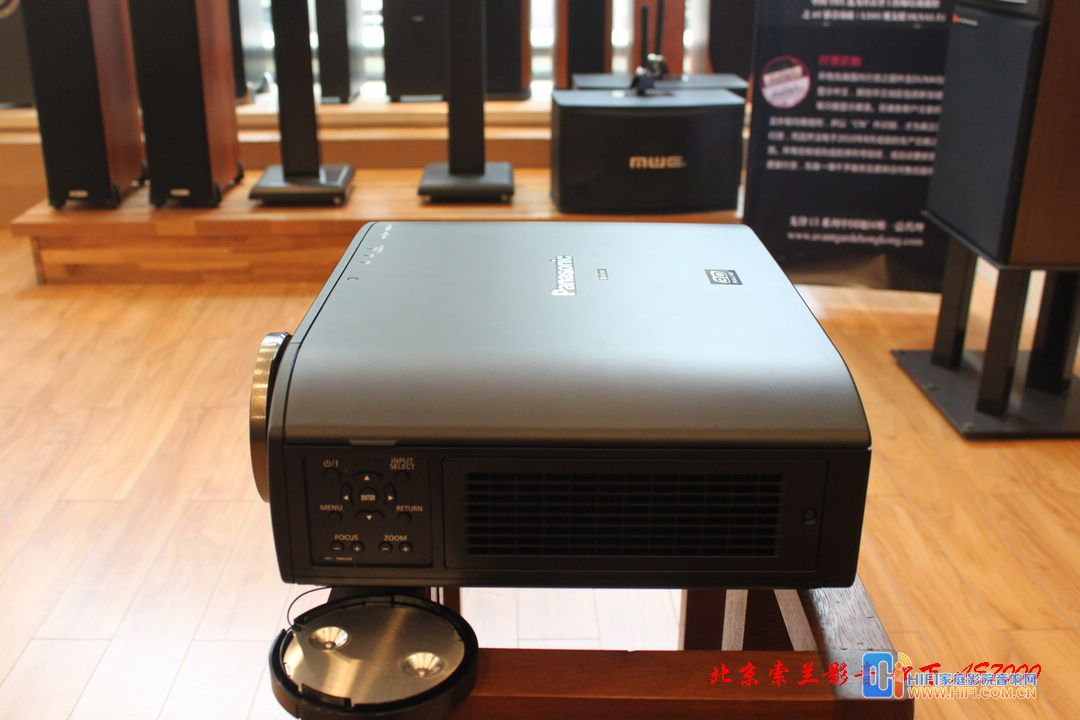

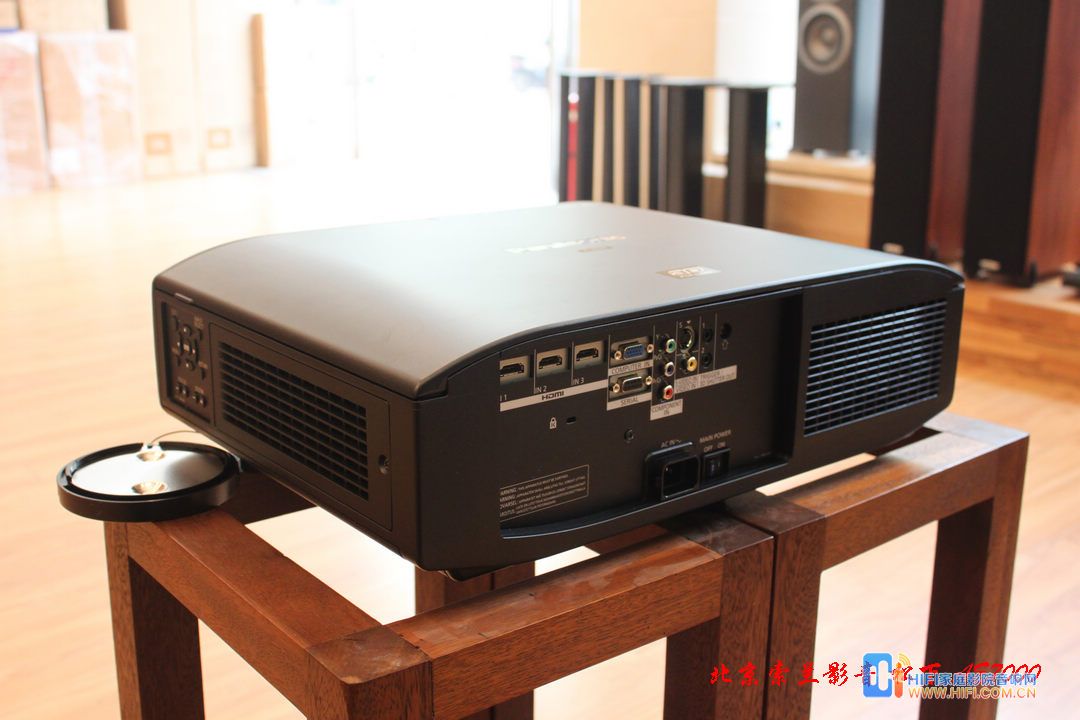

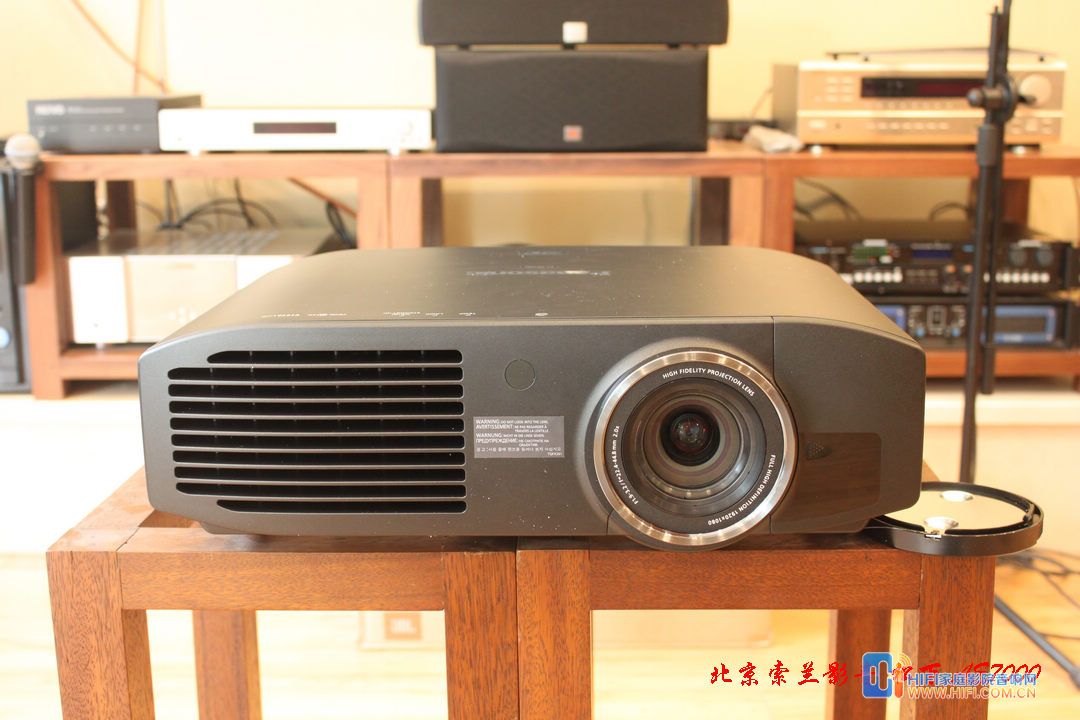

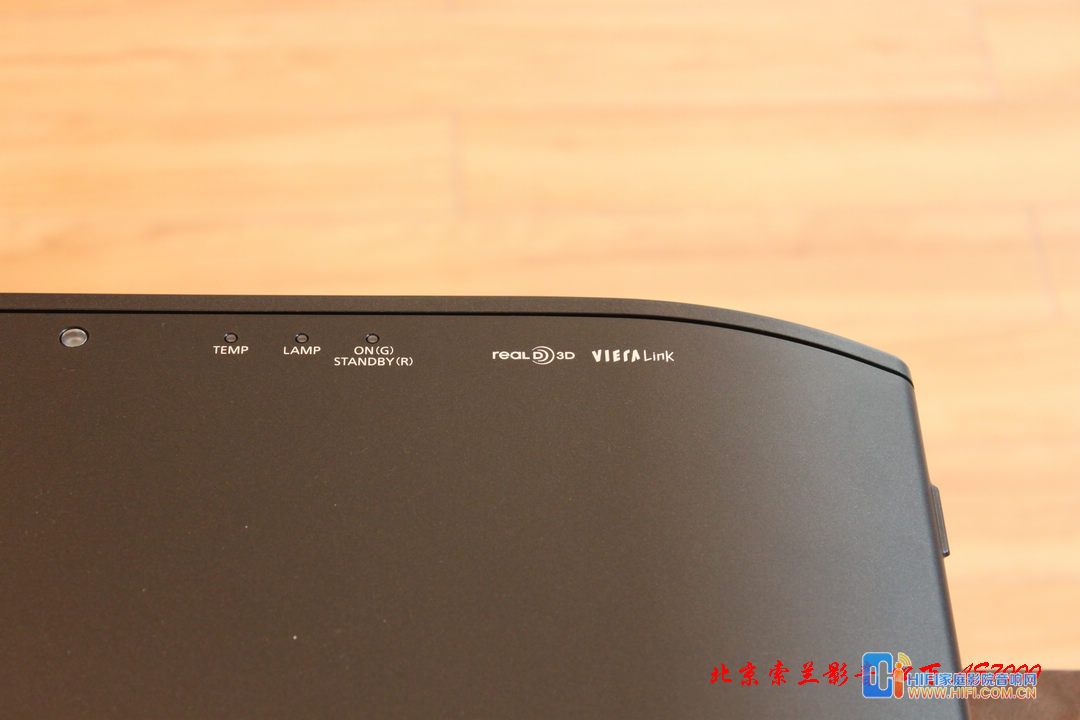

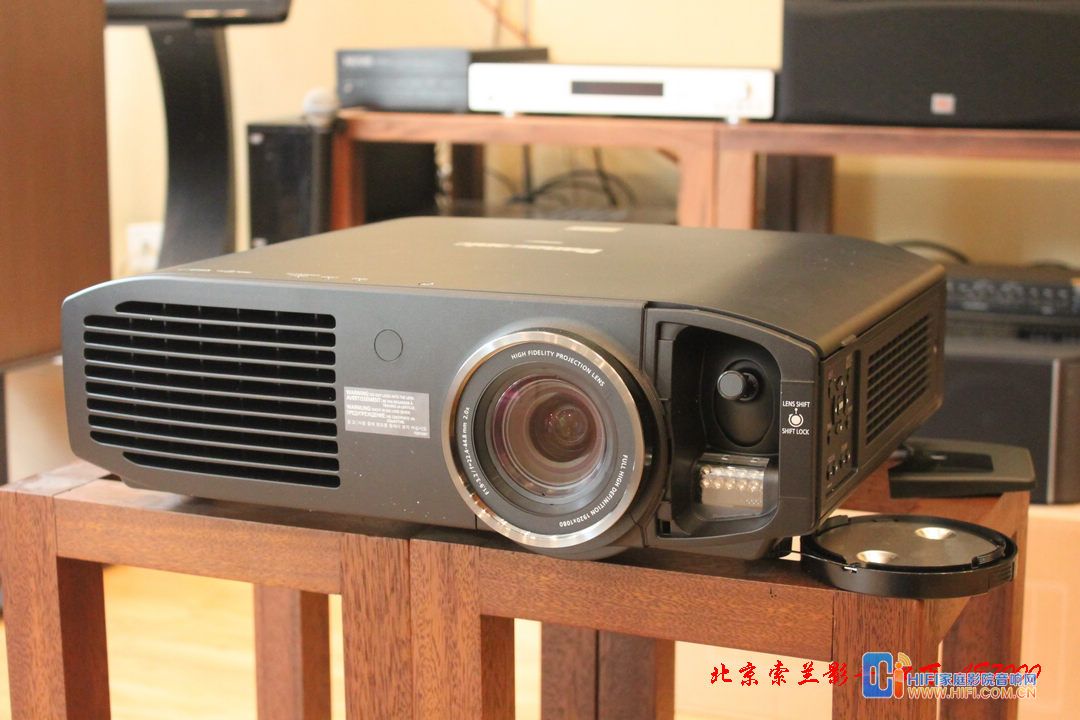

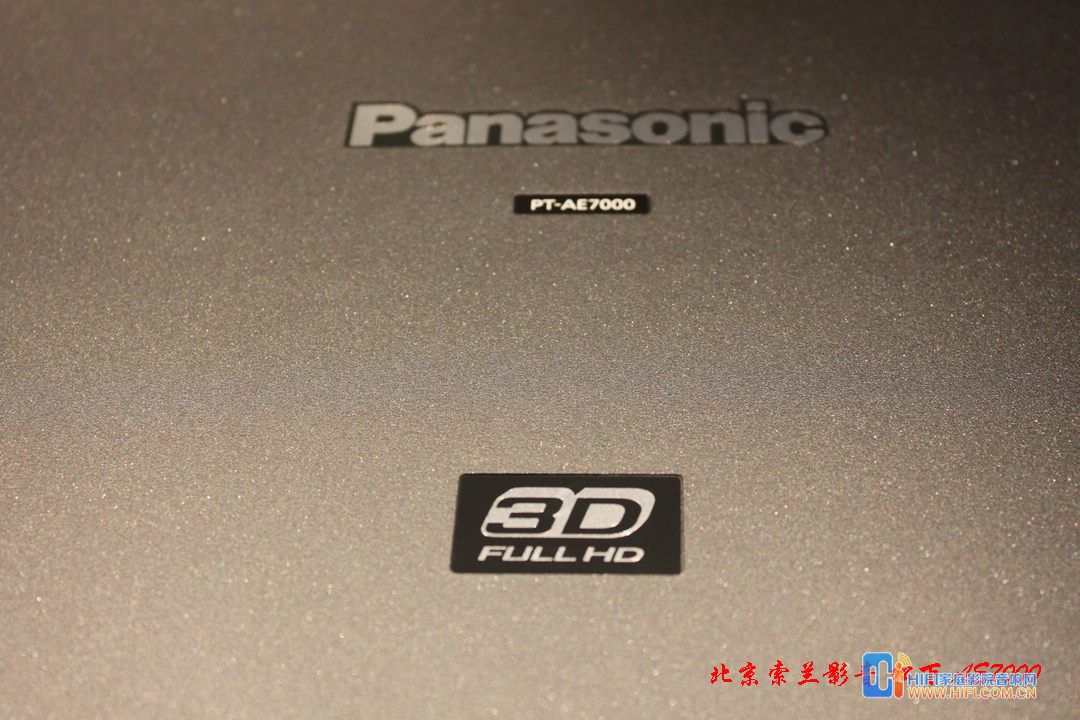

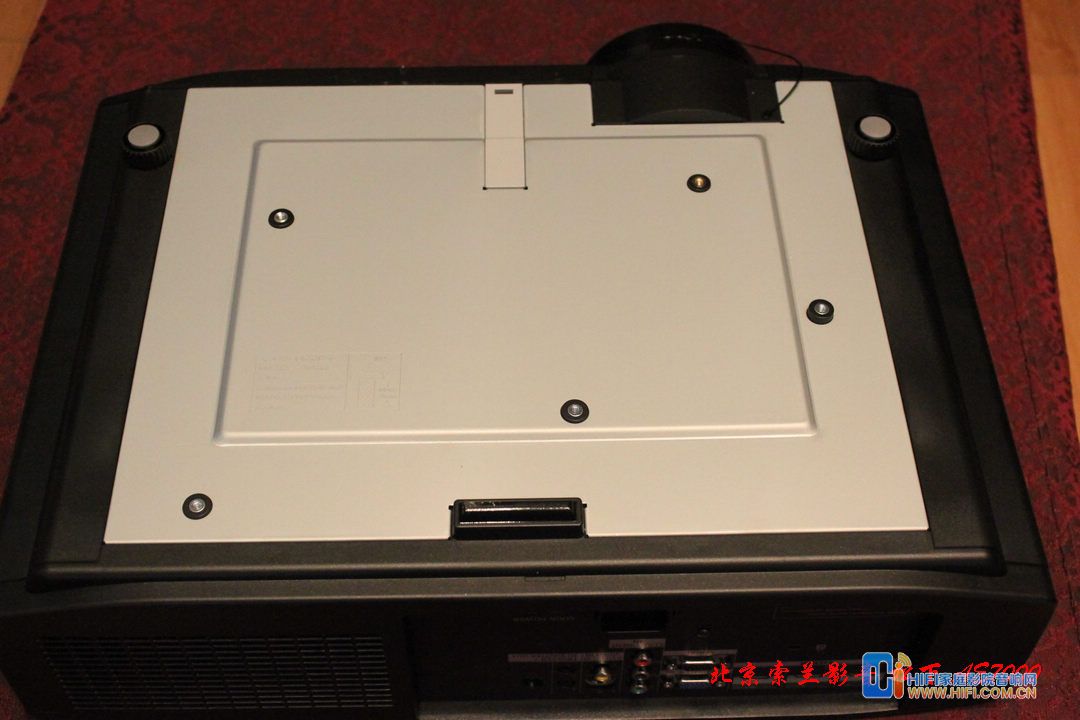

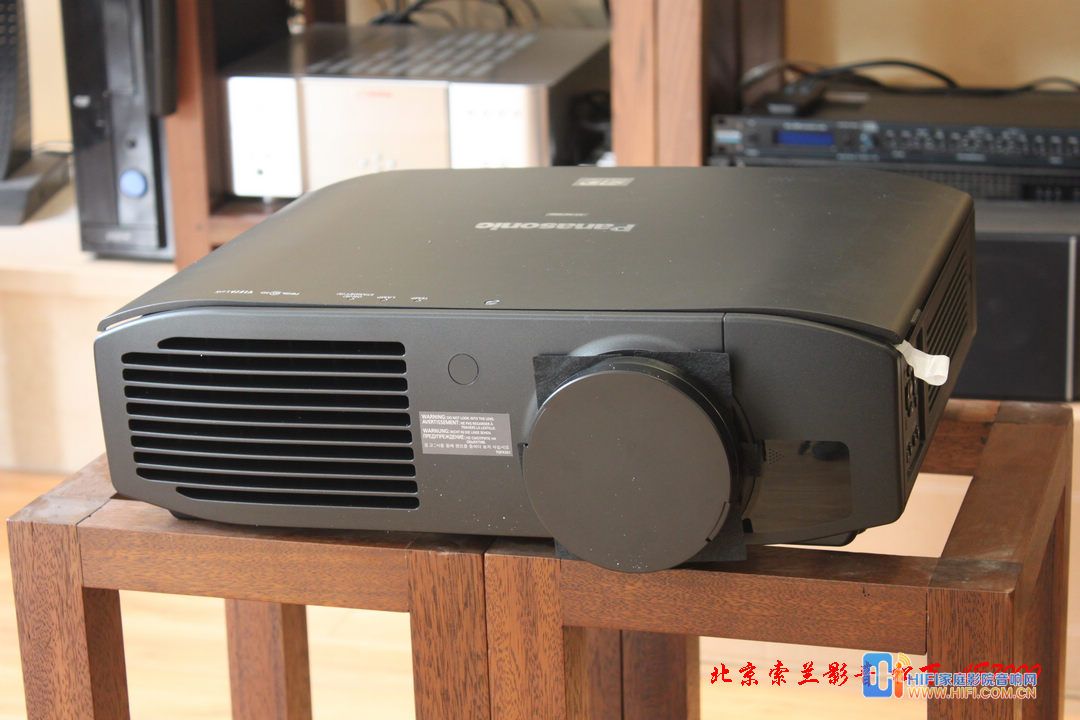

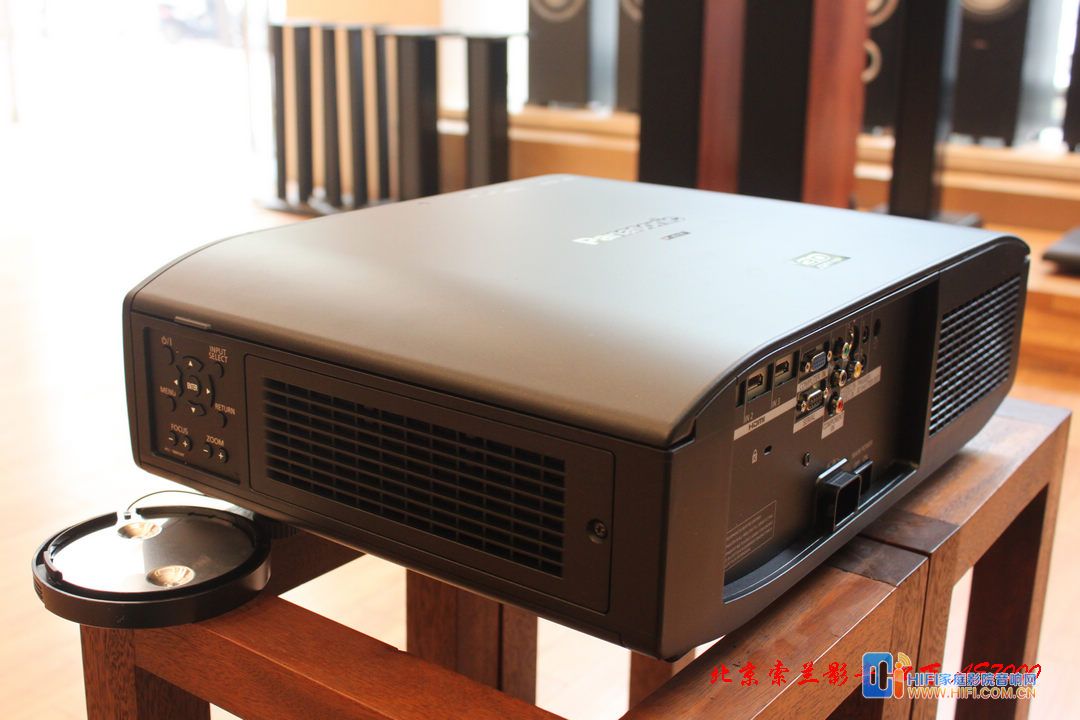

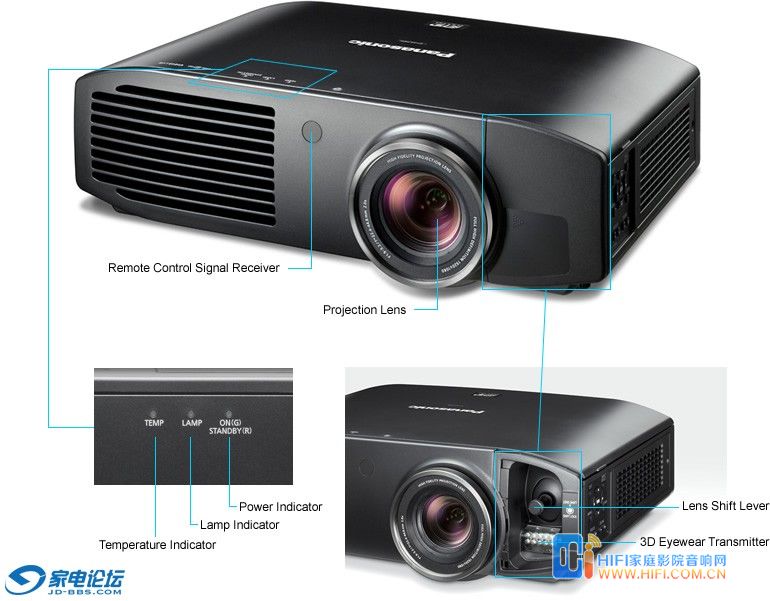

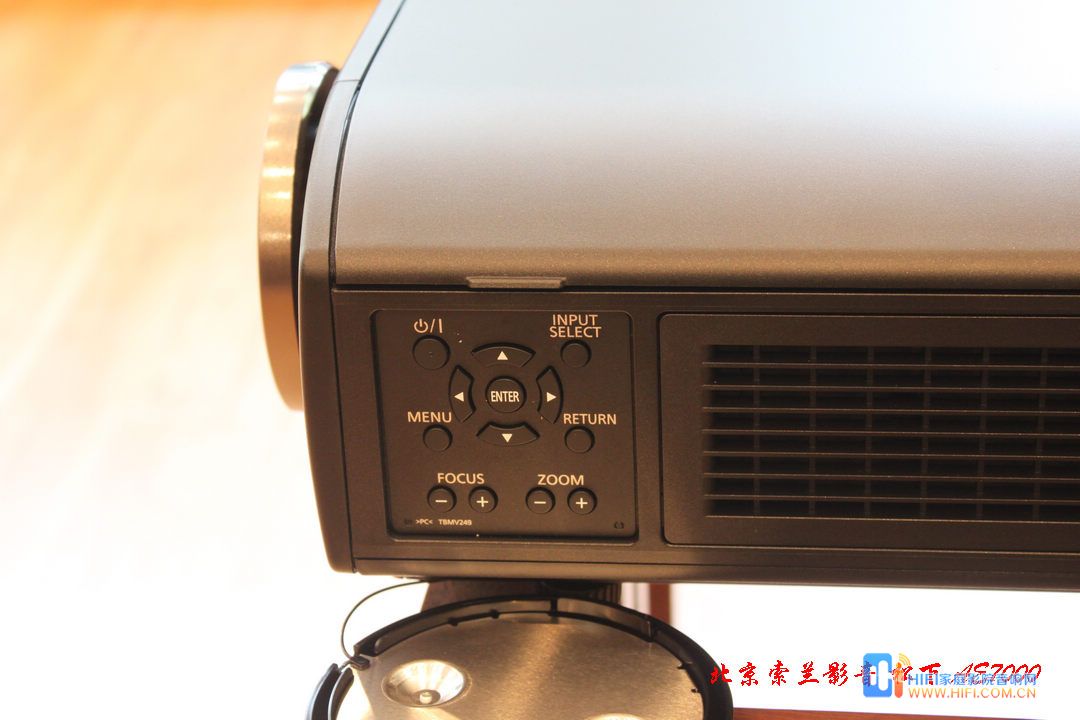

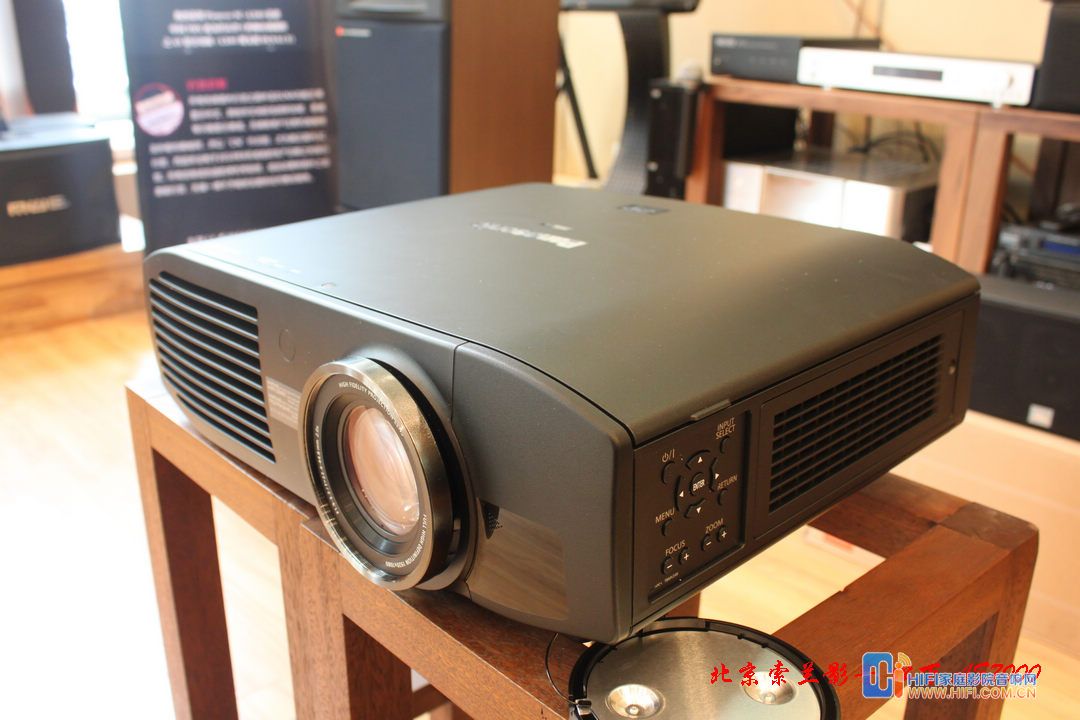

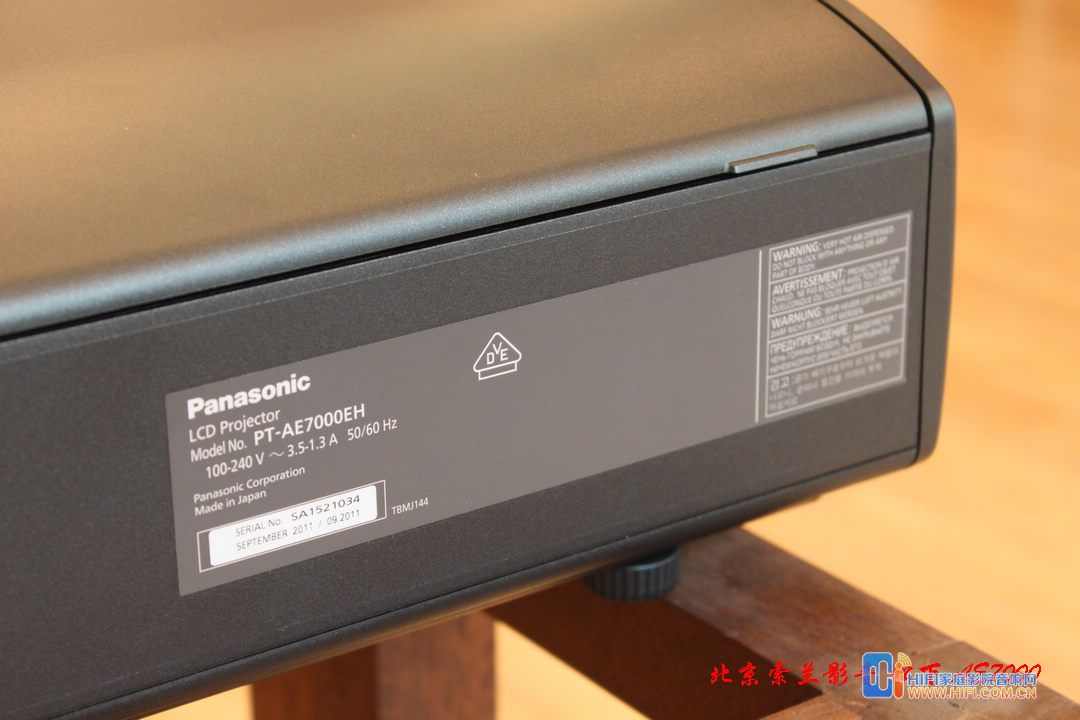

松下AE7000特写机器外观照片
[page]
[page]
[page]
[page]

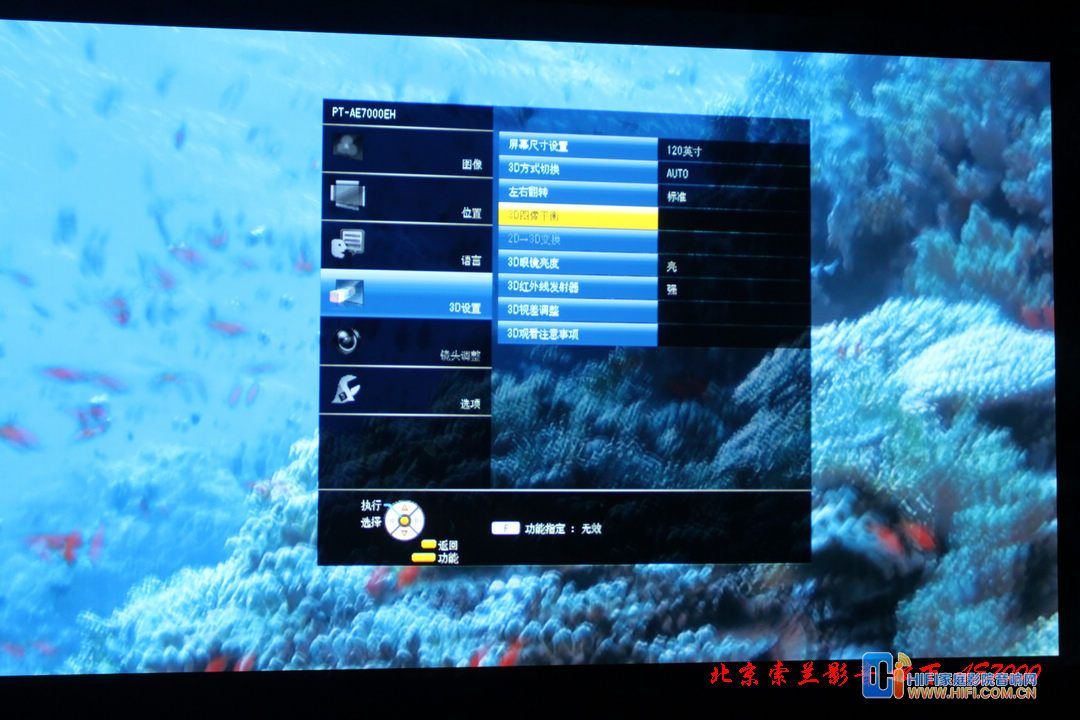

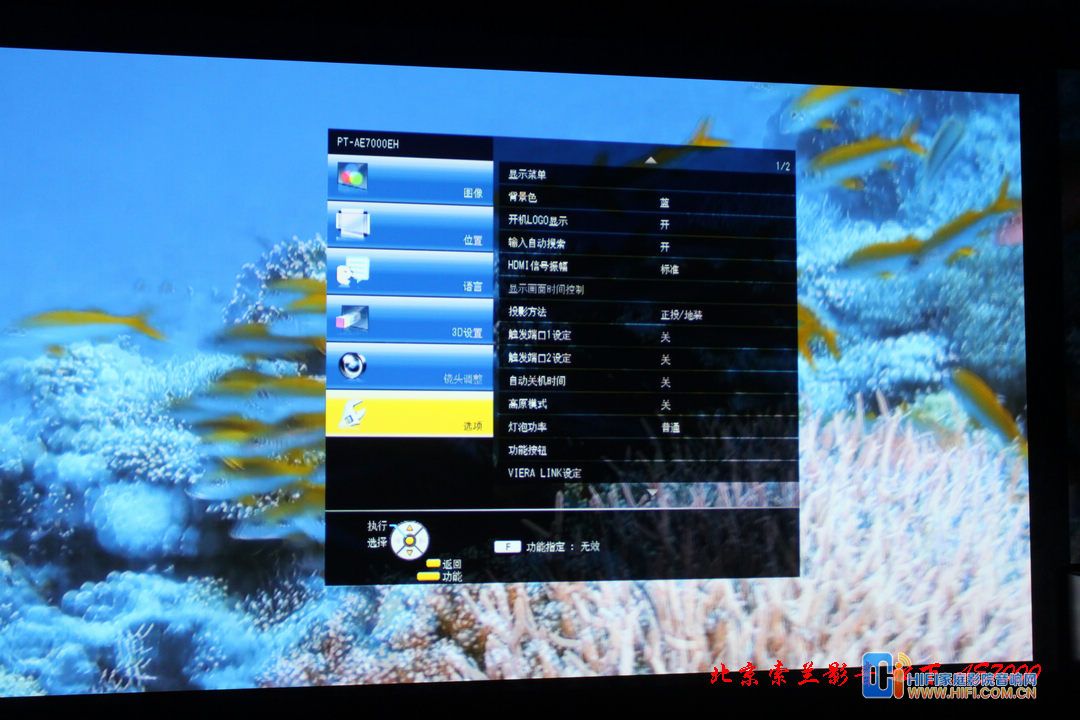

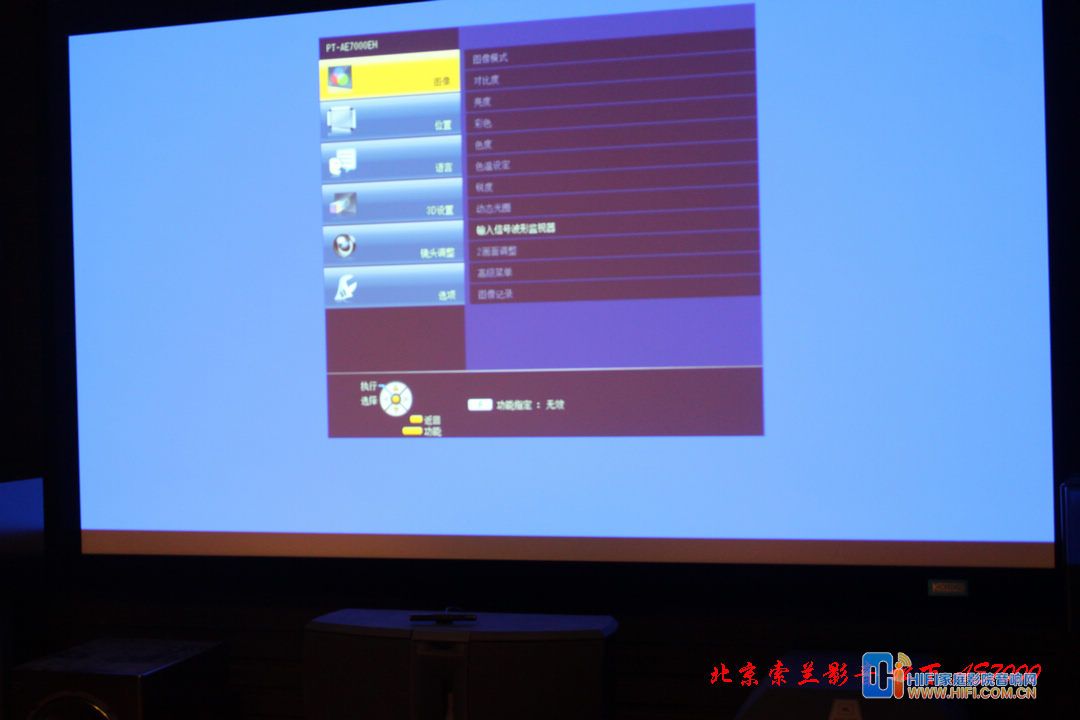

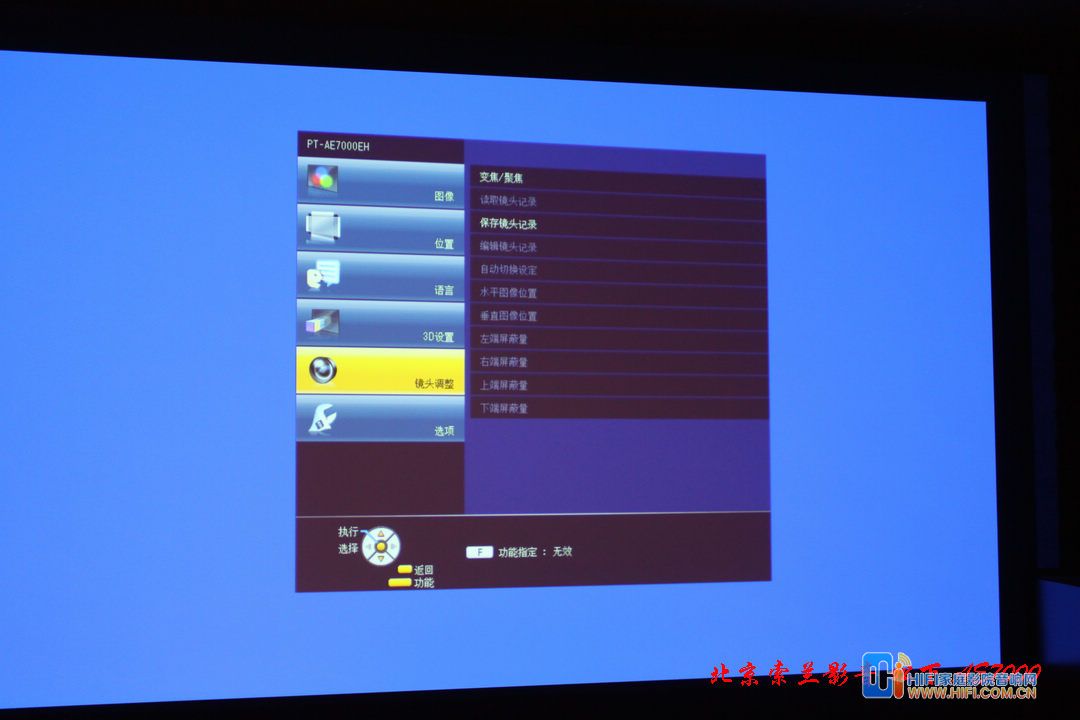

菜单介绍

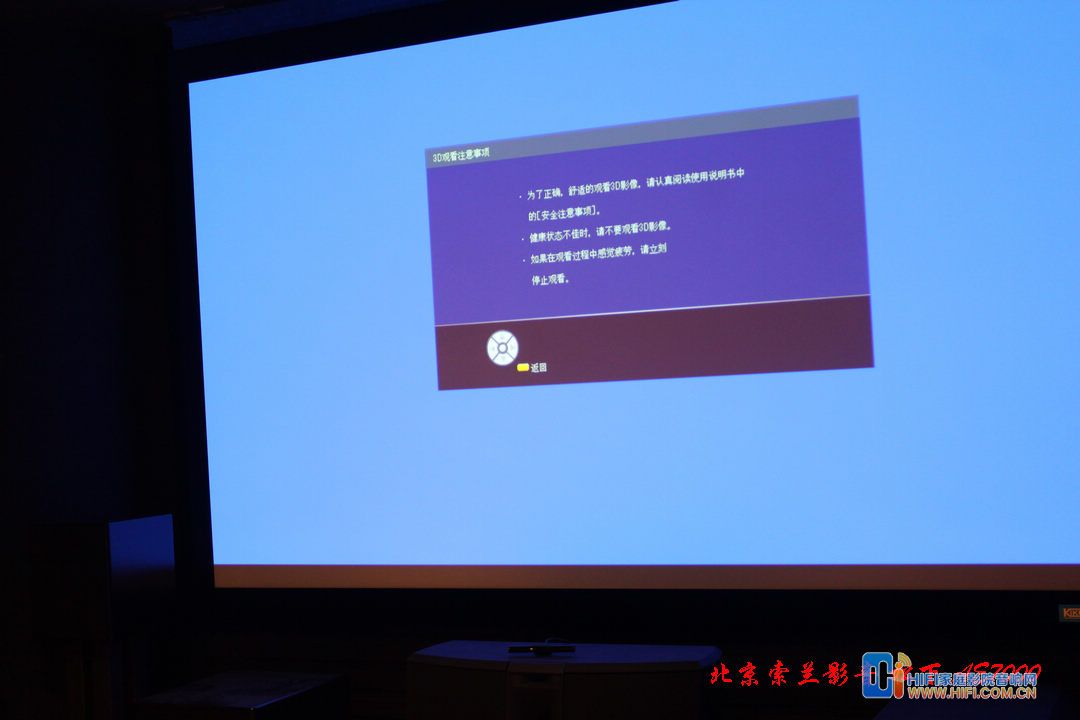

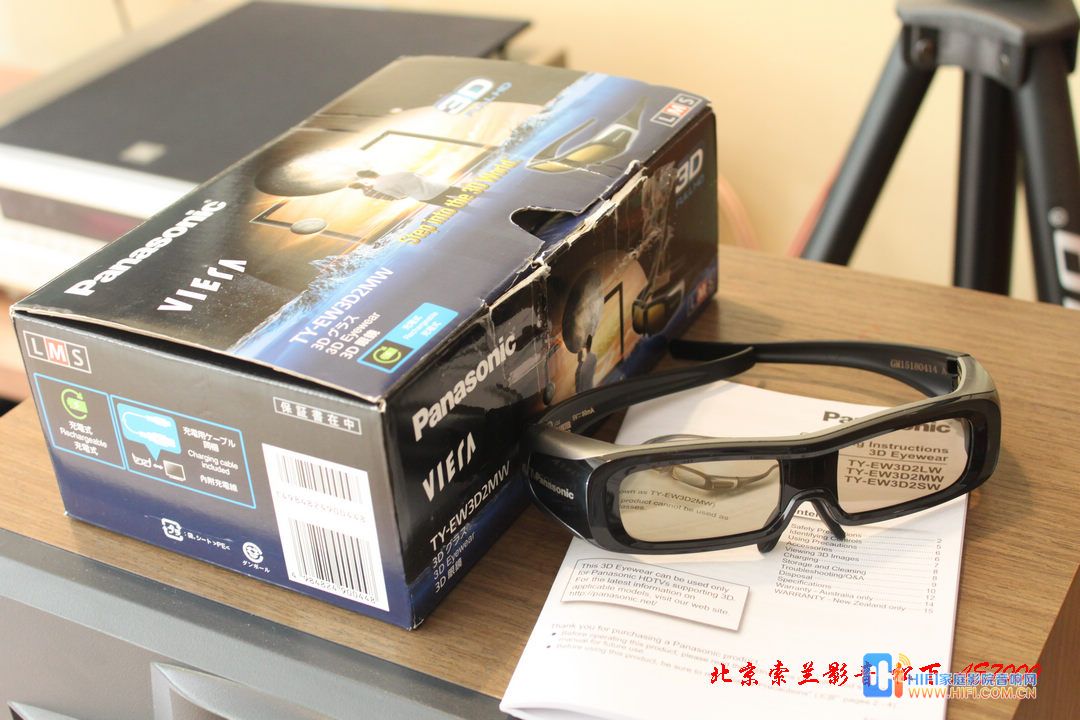

3D温情提示
[page]
|
Model |
PT-AE7000EH |
|||
|
Power supply |
100–240 V AC, 50/60 Hz |
|||
|
Power consumption |
285 W (0.08 W in standby mode) |
|||
|
LCD*2 panel |
Panel size |
18.7 mm (0.74 in) diagonal (16:9 aspect ratio) |
||
|
Display method |
Transparent LCD panel (× 3, R/G/B) |
|||
|
Drive method |
Active matrix |
|||
|
Pixels |
2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels |
|||
|
Lamp*3 |
200 W UHM lamp (The lamp replacement cycle is up to 4,000 hours |
|||
|
Lens |
Powered zoom/focus lenses (1.35:1–2.70:1), F 1.9–3.2, f 22.4–44.8 mm |
|||
|
Projection size (diagonal) |
2D projection |
1.02–7.62 m (40–300 inches) |
||
|
3D projection |
1.02–5.08 m (40–200 inches) |
|||
|

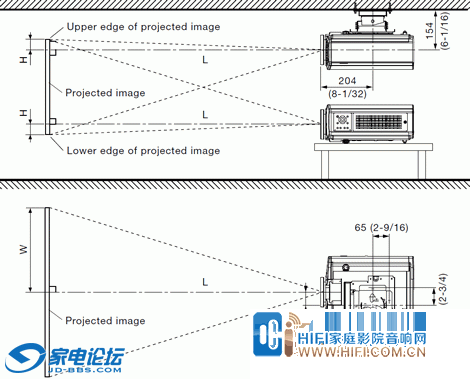

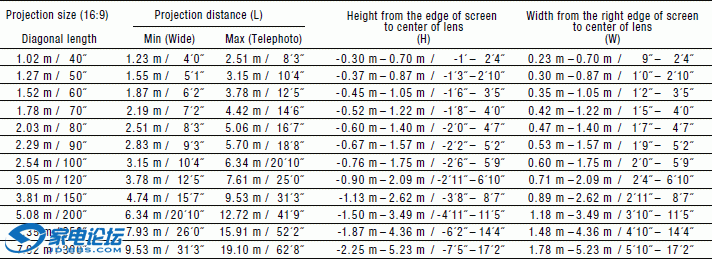

Throw distance |
1.16–18.08 m (3 ft 10 in to 59 ft 4 in) |
|||
|
Colors |
Full color (1,073,741,824 colors) |
|||
|
Brightness*5 |
2,000 lm*6 |
|||
|
Center-to-corner uniformity ratio*5 |
85% |
|||
|
Contrast ratio*5 |
300,000:1*7 (full on/full off) |
|||
|
Resolution |
1,920 × 1,080 pixels |
|||
|
Scanning frequency |
RGB |
fH: 15 kHz–74 kHz, fV: 24 Hz–85 Hz, |
||
|
YPBPR (YCBCR) |
525i (480i): fH 15.75 kHz; fV 60 Hz, |
625i (576i): fH 15.63 kHz; fV 50 Hz, |
||
|
Video/S-Video |
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] |
|||
|

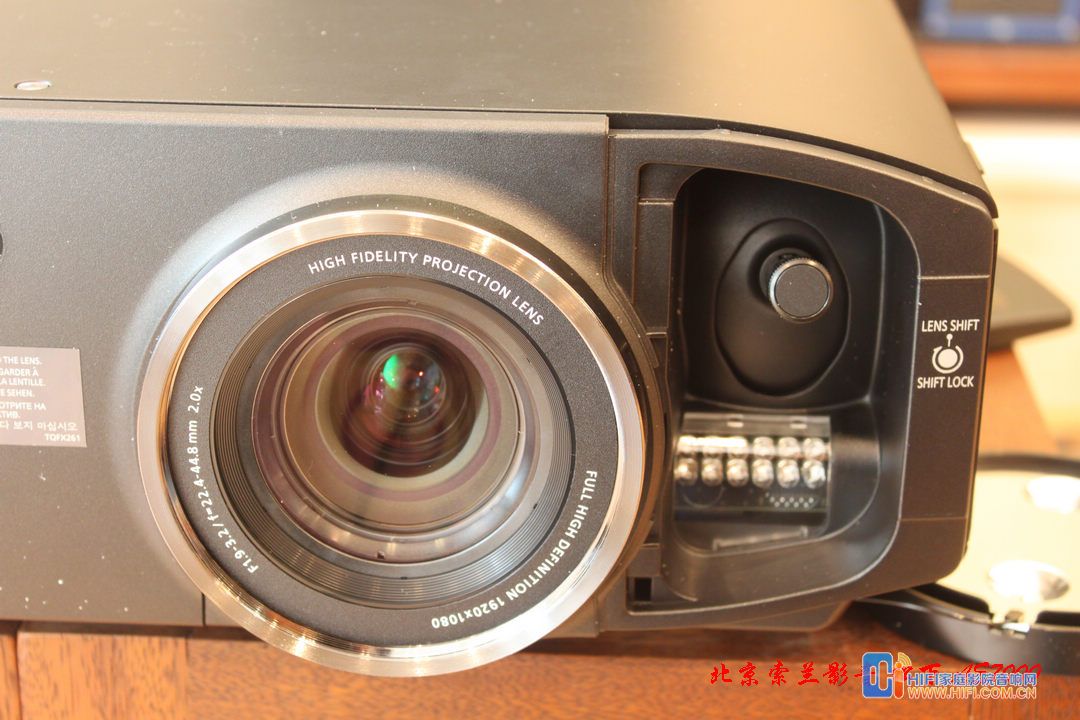

Optical axis shift*8 |
Vertical: ±100%, horizontal: ±26% |
|||
|
Keystone correction range |
Vertical: approx. ±30°*9 |
|||
|
Installation |
Ceiling/desk, front/rear (menu selection) |
|||
|
On-screen menu languages |
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, |
|||
|

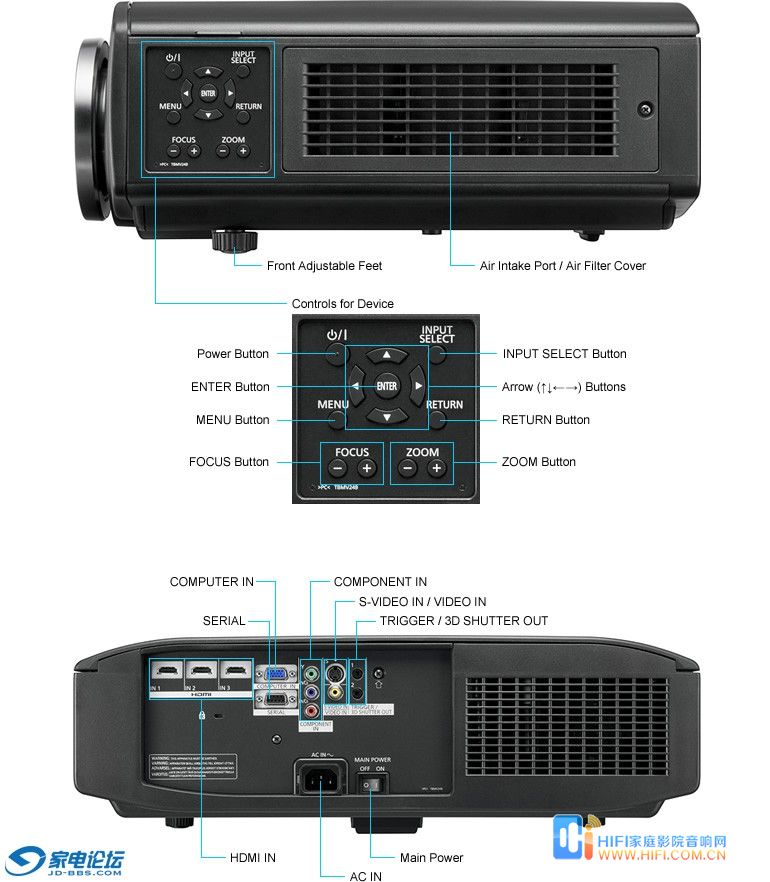

Terminals |
HDMI IN |
HDMI connector × 3, HDMI™ (Deep Color, x.v.Color™*10, CEC*11 ), |
||
|
COMPUTER (RGB) IN |
D-sub HD 15-pin (female) × 1 |
|||
|
|
RGB signal |
R, G, B: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms, |
||
|
YPBPR/YCBCR signal |
Y: 1.0 Vp-p (including sync signal), PB/PR: 0.7 Vp-p, 75 ohms |
|||
|
COMPONENT IN |
RCA pin × 3 (YPBPR/YCBCR) |
|||
|
|
Y |
1.0 Vp-p, 75 ohms |
||
|
PB/CB, PR/CR |
0.7 Vp-p, 75 ohms |
|||
|
TRIGGER IN / TRIGGER OUT / |
M3 × 2, 12 V, max. 100 mA |
|||
|
VIDEO IN |
RCA pin × 1 |
|||
|
S-VIDEO IN |
Mini DIN 4-pin × 1 |
|||
|
SERIAL IN |
D-sub 9-pin × 1 for external control (RS-232C compliant) |
|||
|
Power cord length |
3.0 m (9 ft 10 in) |
|||
|
Cabinet materials |
Molded plastic (PC+ABS) |
|||
|
Dimensions (W × H × D) |
470 mm × 151 mm × 364 mm*12 (18-17/32˝ × 5-15/16˝ × 14-11/32˝)*12 |
|||
|
Weight*13 |
Approx. 8.7 kg (19.2 lbs) |
|||
|
Operation noise*5 |
22 dB (lamp power: ECO) |
|||
|
Operating temperature |
0°–40°C (32°–104°F)*14 |
|||
|
Operating humidly |
20%–80% (no condensation) |
|||
|
Remote control unit |
Power supply |
3 V DC (AA/R6 type battery × 2) |
||
|
Operation range*15 |
Approx. 7 m (23 ft) when operated from directly in front of the signal receptor |
|||
|
Dimensions |
48 × 138 × 28 mm |
|||
|
Weight |
Approx. 125 g (4.4 oz) (including batteries) |
|||
|
Supplied accessories |
Power cord (× 1) (× 2 for PT-AE7000EA) |
|||
|
Optional accessories |
Replacement |
ET-LAA310 |
||
|
Ceiling mount bracket |
ET-PKA110H (for high ceilings) |
|||
|
ET-PKA110S (for low ceilings) |
||||
|
3D IR transmitter |
ET-TRM110 |
|||
|
3D Eyewear |
TY-EW3D3L (large size)*16 |
|||
*1
Product numbers vary depending on the market. PT-AE7000 is the product number for areas outside of Europe, and PT-AT5000 is the product number within Europe.
*2
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology to provide the finest possible image. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
*3
The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
*4
The values above are maximum values when they are used in cycles of being turned on for 2 hours and off for 0.25 hours. When the lamps are turned on and off more frequently, the lamp replacement cycle is shortened. The usage environment affects the lamp replacement cycle.
*5
Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*6
In dynamic mode, with dynamic iris on.
*7
In cinema 1 mode, with dynamic iris on.
*8
Shift range is limited during simultaneous horizontal and vertical shifting.
*9
When a 3D signal is being input or when a 2D signal is converted to 3D, the keystone correction does not function.
*10
Effective in Rec. 709 picture mode.
*11
CEC is an abbreviation for Consumer Electronics Control. Operation may not be possible with some connected equipment or settings.
*12
With legs at shortest position.
*13
Average value. May differ depending on models.
*14
When [HIGH ALTITUDE MODE] is set to [ON]: 0°C – 35°C (32°F–95°F)
*15
Operation range differs depending on environments.
*16
If you do not have a Panasonic 3D TV that supports 3D video, use a SANYO eneloop Mobile Booster KBC-L2 series to charge your Eyewear.
The code that follows KBC-L2 may differ depending on the country of purchase. The code at the end of the model number of 3D Eyewear may
differ depending on the country of purchase.
[page]
[page]
AE7000到货已经几天了,经过这几天的鉴赏,对松下这款新机器的感觉确实很好.
2D效果来说,作为一款LCD投影机,他的对比度标称 30万:1 ,可以说是同档次无出其右了,今天的AE7000在黑色场景的过度,细节表现方面比AE4000强多了 ,黑色下沉很黑很透, 而且白色亮度表现也很出色, 我一直认为AE4000的影院模式暗部细节少,画面太暗, 调到标准模式黑色下沉不够图像发灰, 只是被枪手鼓吹A4000被捧的太高了 ,AE7000在松下传统的影院2模式下表现出优秀的电影胶片效果, 出色的电影感,可以媲美SHARP 的Z17000的2D电影感, 暗部细节表现力和对比度立体感也能堪比EPSON TW4500和HW30 . 当然SONY,三菱的SXRD技术的画面清晰度还是LCD所不急的,配备刷新率达到480HZ的处理芯片,让他成为LCD 目前最高的旗舰产品.
镜头记忆功能可以实现您2.35:1和16:9,甚至更多比例的不受限制的切换,而且可以调整画面水平垂直位置.即使您有两块幕,他也可以轻松切换,不用在调镜头,这个昨天安装时很受震撼.
3D画面效果 同样电影感胶片感十足,3D动态效果流畅,没有卡顿,这可能是他480HZ的处理芯片超强性能发挥的作用, 但带上眼镜后确实亮度有明显的衰减，这点需要继续考量,一会发下昨天给北京一千栋的客户安装AE7000的图,大家欣赏
